SAM Test methods: comparisons
- Posted by Francisco Javier Aparicio Rebollo
- On June 17, 2020
- 0

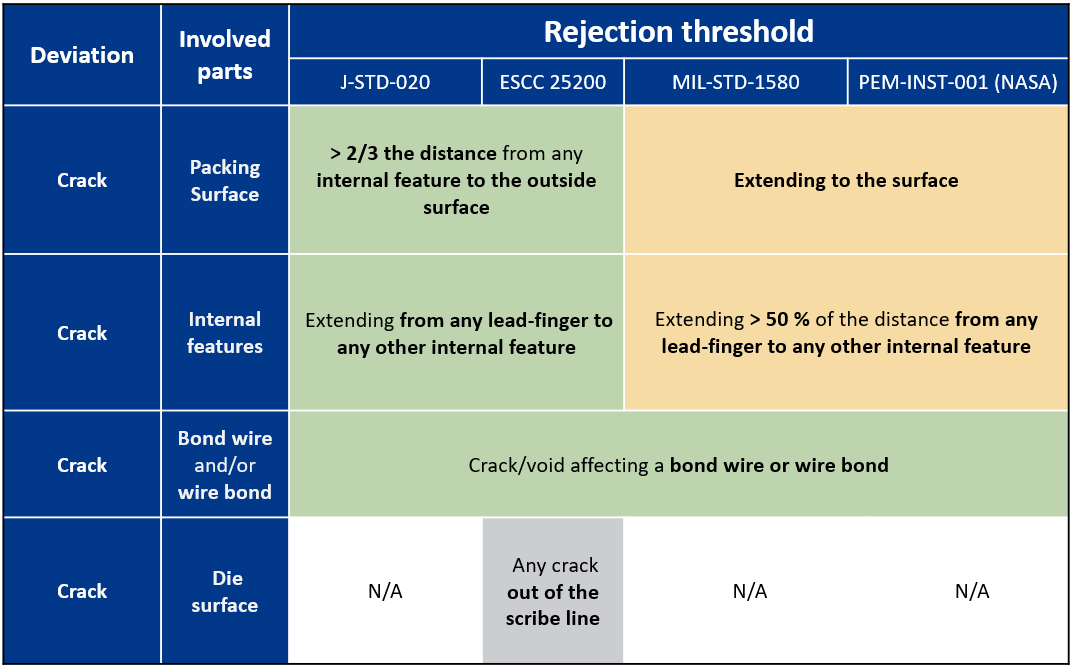

Rejection criteria comparison
Crack extending from internal features
Void affecting a bond wire
Additional testing: This deviation is considered as a reliability concern and additional tests must be conducted to check the system performance. From the point of view of the SAM inspection, such deviations do not comply with the acceptance criterion
Additional testing: This deviation is considered as reliability concerns and additional tests must be conducted to check the system performance. From the point of view of the SAM inspection, such deviations do not comply with the acceptance criterion

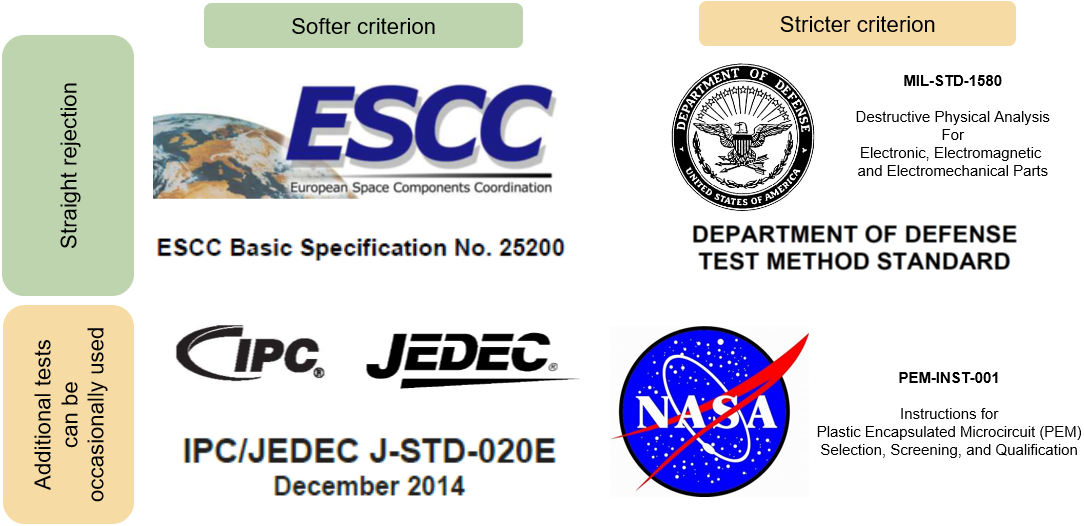

Conclusion
The most frequently observed issues are addressed by all the analyzed specifications. Nonetheless, there are remarkable differences such as:
- The rejection thresholds
- Only in some methods additional tests and/or inspections are used to confirm suspected results and to further evaluate the actual impact on the systems performance, reliability and or durability
Read More about SAM Test Flow and Procedures
Contact us
Co-authors: David Ramírez-Cruzado Monge; Jose Cándido Vázquez, Dimas Morilla Mairen, Manuel Domínguez Álvarez, Antonio Rodríguez Arenas.
Since 2007 Dr. Aparicio has developed a productive research career within the field of Materials Science including post-doctoral stays at the University of Trento, the University of Mons, and the Spanish National Research Council (CSIC). His researches have been published in more than 30 articles in reputed international research journals and conferences (> 70) including more than 10 invited talks and lectures.
Within the frame of the program “Torres Quevedo” for the Knowledge Transfer and the incorporation of research talent into the industry, in 2019 he joined Alter Technology as Senior Materials Science Test Engineer. In 2019 he was appointed to lead the Scanning Acoustic Microscopy Service. Within this framework, he currently collaborates in different ESA projects (JUICE and PLATO).”
Actually, he is not in our company anymore, but still as an external collaborator in our blog.
