Alter Technology SAM Additional Testing Capabilities
- Posted by Francisco Javier Aparicio Rebollo
- On January 29, 2020
- 0
Among the test flow where SAM microscopy is used, other tests are carried out in which Alter Technology also has extensive experience, giving its customers the possibility of doing all the necessary tests with our expert engineers, offering support and follow-up at all times thanks to Virtual Lab; where immediate access is generated and in real time to all the information on the parts examined.

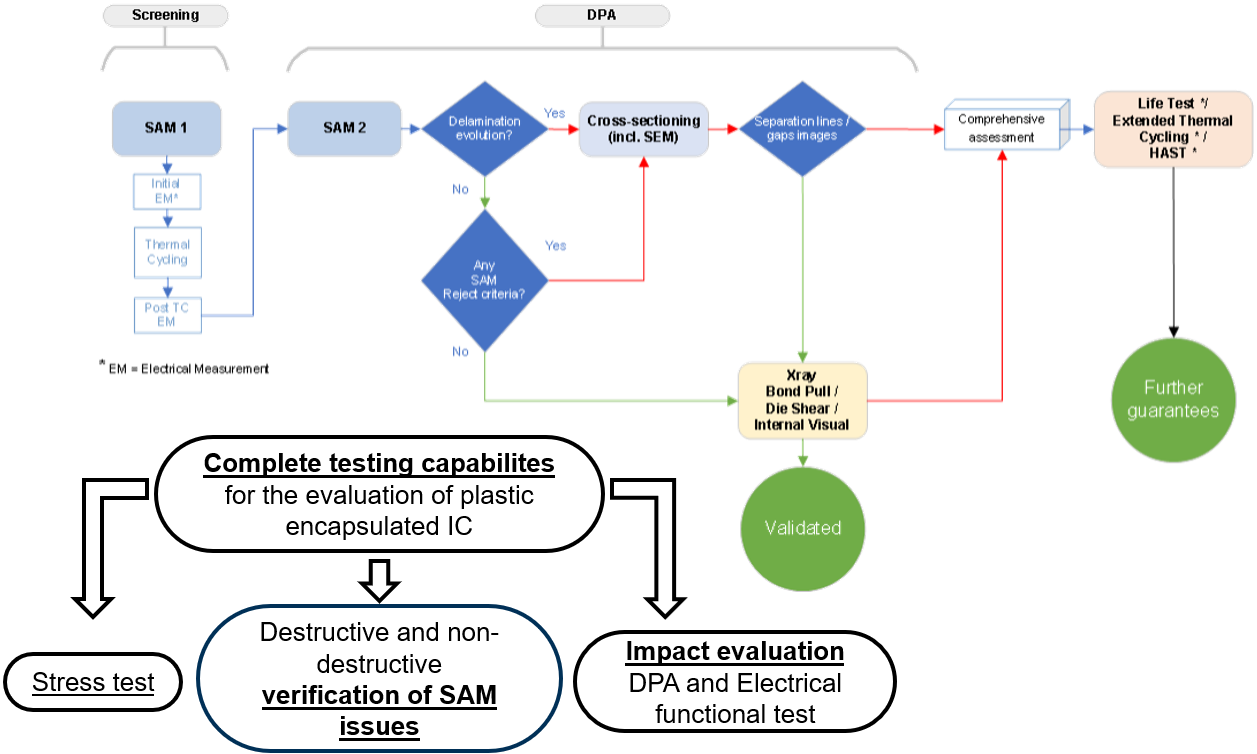

Default test flow where SAM microscopy is routinely used
Different temperature cycling capabilities

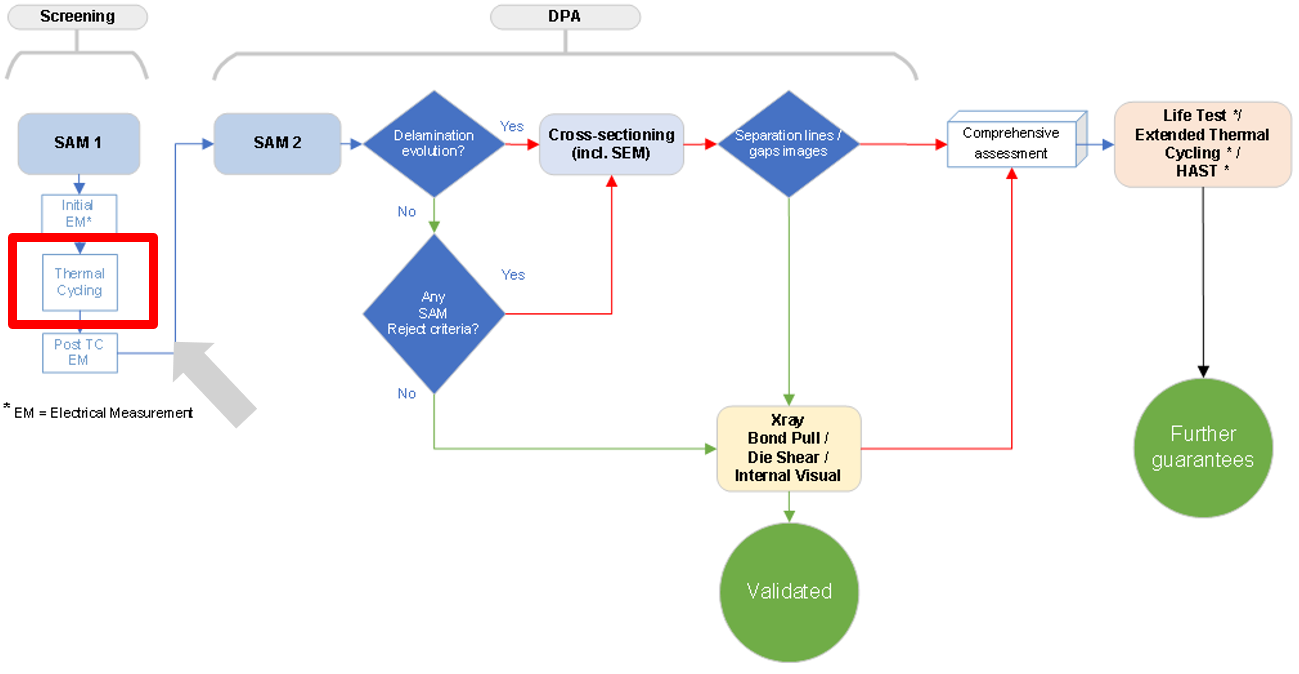

Thermal Cycling is one of the tests included in the SAM microscopy test flow. In the graph below you can see exactly where they are located during the process.

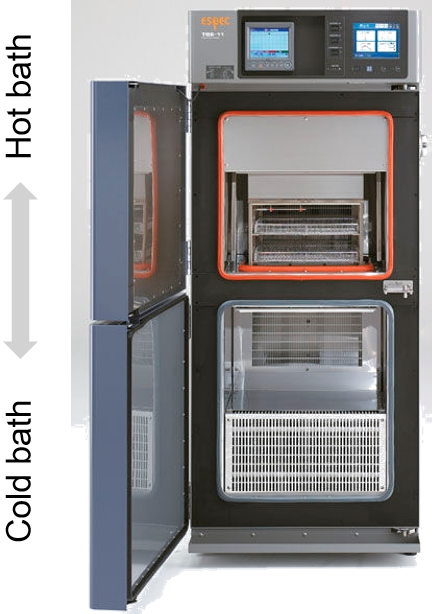

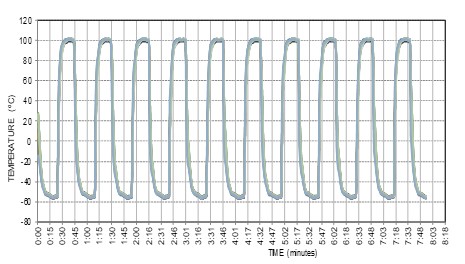

In-house temperature cycling capabilities

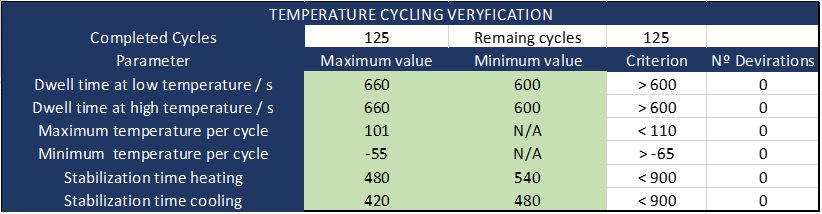

Software control and verification
Cross-sectioning process provides access to the device internal structure, its materials, and design. Is included in the SAM test flow when is needed a delamination evolution together or in addition to the SEM analysis.

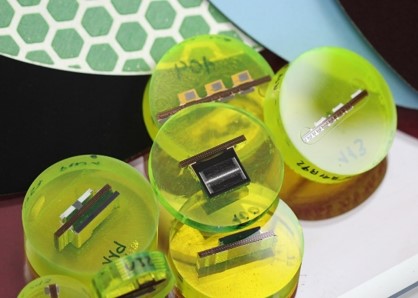

ESA recommended microsection facility

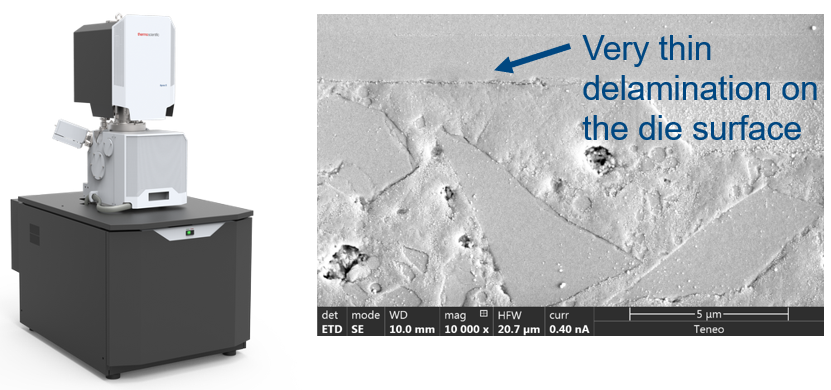

Ultra High resolution FE-SEM verification
X-ray inspection
Ideal to confirm wire-deformation findings

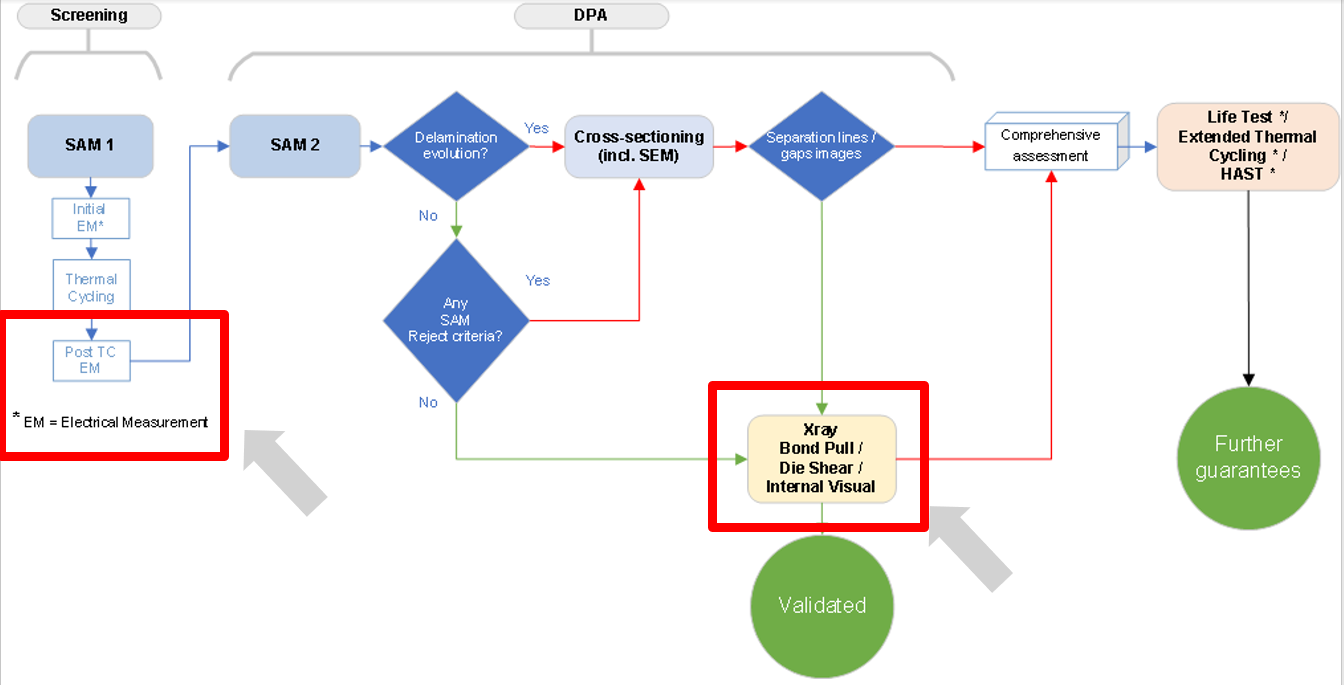

Many other tests are related to SAM capabilities, X-ray testing, Bond Pull, Die Shear, Internal Visual…, and all of them are offered by our laboratories with excellent professionals and more than 30 years of experience in the space market.
After the stress test, our specialized DPA lab assesses the impact of the SAM detected issued by destructive physical test.
SEM internal detection of issues ascribed to crack and delamination
Mechanical test

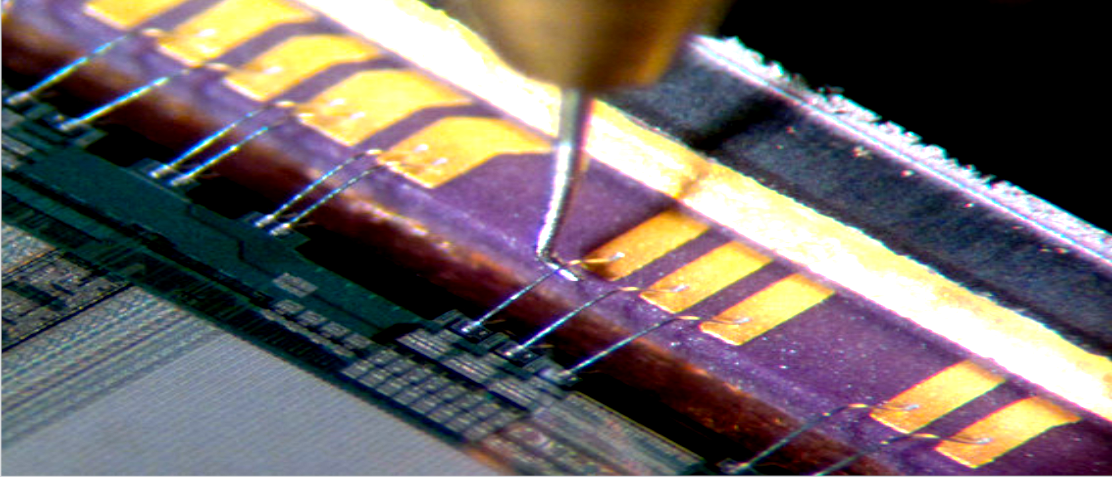

- Bond pull, wire and bond strength
- Ball shear
- Die shear

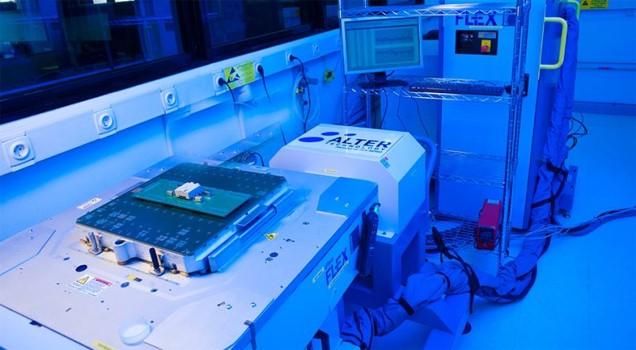

Specialized lab in Electrical testing
In-house capability and expertise to perform electrical screening of any type of electronic component technology
Active devices testing: discrete (diodes and TRT) through standard linear and digital components to VLSI
Read More about SAM Test Flow and Procedures
