Issue 208 of ESCC QUALIFIED PART LIST (QPL)
- Posted by Emilio Cano García
- On September 17, 2020
- 0
The changes in issue 208 of ESCC QUALIFIED PART LIST (QPL) are included in the DCR 1348 and detailed herein below:
New:
- Certificate 367 from AVX (UK). This certificate lists Ceramic Capacitors type II based on case styles BR, CV and CH, included in the detail specifications ESCC 3001/030, ESCC 3001/034 and ESCC 3009/034. These capacitors have already qualified under the certificates 231, 262 and 264.
Remove:
- Certificates 231, 262 and 264 from AVX (UK). Mentioned above, these certificates have been merged into new certificate 367.

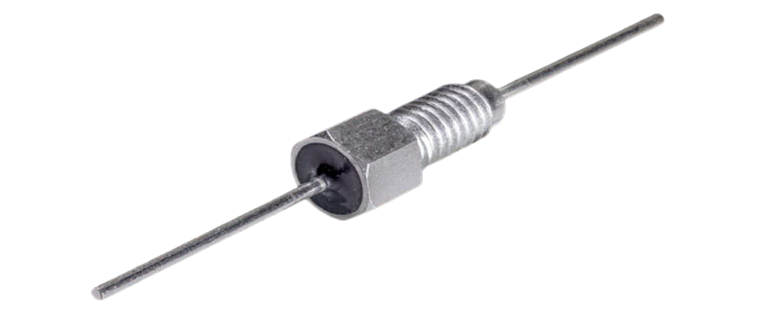

- Certificate 252H from Exxelia (France). This certificate lists EMI-RFI Feedthrough Filters based on types SFC, SFL and SFP. The qualification validity of these filters has expired.
Extension (the validity date of the certificate is extended and the scope is not changed, which means no new components are included):
- Certificate 251K from Exxelia (France). This certificate lists Mica Capacitors based on type HT86PS included in the detail specification ESCC 3006/022.
- Certificate 266K from TE Connectivity (Ireland). This certificate lists NTC Thermistors based on types G15K4D489 and *K3A35* included in the detail specifications ESCC 4006/013 and ESCC 4006/014.
- Certificate 313D from Kongsberg (Norway). This certificate lists SAW Filters included in the detail specification ESCC 3502/002
- Certificate 331B from AVX (UK). This certificate lists Ceramic Capacitors based on type TTP included in the detail specification ESCC 3009/041.
- Certificate 353A from Exxelia (France). This certificate lists Polyterephtalate Dielectric Capacitors based on types PM948S/94S, PM907S/90S, included in the detail specifications ESCC 3006/020, ESCC 3006/024, ESCC3006/025 and ESCC 3006/026.
