A K&S IConn ProCu PLUS ball bonder, supplied by Inseto, provides Alter Technology TÜV NORD UK with additional and enhanced manufacturing capabilities, empowers the company to take on new kinds of projects and promises a rapid return on investment.

Alter Technology TÜV NORD UK Ltd, based in Livingston, Scotland – provides contract package design and precision assembly services for a wide range of optoelectronic, microelectronic, and MEMS devices.

Offering end-to-end backend semiconductor manufacturing, from wafer singulation to assembled products, the company’s design and process IP enables customers to reduce development and manufacturing costs plus reduce time to market.

Matt Booker, Head of Sales and Assembly Services, comments: “We serve a variety of high-tech markets. For example, we’ve done projects for ESA, the European Space Agency. We also have customers in medical, and we’ve made components for machine vision systems in the industrial sector.”

Alter Technology UK recently attained AS/EN 9100 quality management certification, based on ISO 9001 but focusing on the aviation, space, and defense industries.

We’re the only packaging company in the Alter group,” continues Booker, “and we serve worldwide markets from right here in the UK. Most of the work we do is for customers directly, but we also enable our parent company to take on projects that require off-the-shelf devices as well as custom-packaged chips, which is where we come in.”

Product volumes range from 10 devices through to a few tens of thousands.

Alter Technology UK operates a Class 10,000 cleanroom with specific areas achieving Class 1000. There is also a designated ‘grey area’ where activities such as wafer sawing, destructive testing, and cross-sectioning/polishing occur.

The company’s manufacturing processes include wafer saws, pick and place machines, wire bonders, plastic mould injection, and hermetic sealing equipment. Ancillary equipment consists of a non-contact metrology system, an x-ray machine, and a destructive test system; all used to validate manufacturing processes.

The company also has a ball bonding machine, which was bought from new and has provided over 10 years of service.

A ball bonder is a type of wire bonding machine. It works by melting the tip of the wire to create a ball, which is then placed to make the first contact. The wire is then drawn to the second contact point. The advantage of a ball bonding process over a wedge bonding process is that the wire can be taken in any direction after the first bond, which leads to a much faster process.

In early 2019, Alter Technology UK decided to invest in a second and more capable ball bonder. Booker explains: “We recognized that our ball bonder was lacking features that prevented us from bidding on a few upcoming projects. A newer, more advanced machine would help us respond to RFQs and pursue new kinds of work. There’s also a benefit in having some redundant equipment and two machines that can do much of the same work, particularly as our original ball bonder was running at near full capacity.”

Alter Technology UK turned to its long-time and trusted supplier Inseto for recommendations.

The Ideal Fit

Established in 1987 and ISO 9001:2015 certified since 2005, Inseto is a technical distributor of equipment and related materials to the semiconductor, microelectronic, and advanced technology sectors.

Based in Andover, the company has three divisions. Its Equipment Division provides manufacturing equipment for the microelectronic, photonic, electronic, photovoltaic, and semiconductor industries; its Consumables Division provides assembly materials and consumable machine items; and its Adhesives Division provides technically advanced adhesives for bonding, sealing, and encapsulation.

Inset, whose relationship with Alter Technology UK dates back to the manufacturer’s earliest trading days, recommended a Kulicke&Soffa (K&S) IConn ProCu PLUS automatic ball bonder (see figure 1). Note: Inseto has been representing K&S in the UK, Ireland, and the Nordic regions for more than 10 years, and one of Inseto’s directors used to work for K&S.

The IConn ProCu PLUS has an ultra-fine pitch (of 40microns) wire bonding capability for copper wire (of 15 to 30microns in diameter) and gold wire capabilities of 35microns pitch with 15microns diameter wire. Also, the bonder has an impressive looping capacity of 7.6mm in length for 25microns diameter wire and 3mm in length for 15microns diameter wire. Ultra-low loops of 40microns high for 15microns diameter wire and 80microns high for 25microns diameter wire. Wire sway is 25microns @ 3 sigmas for wire lengths shorter than 2.54mm and +/- 1% of wire length at 3 sigmas for longer wires. The bonding area is 56 by 90mm (X and Y axes, respectively), and the total bond placement accuracy of 2microns at 3 sigmas.

The ball bonder can also do stand-off stitch bonding, where a bump is placed on the die pad first, then the wire bond is made from the package (where the ball is identified) to the bump on the die.

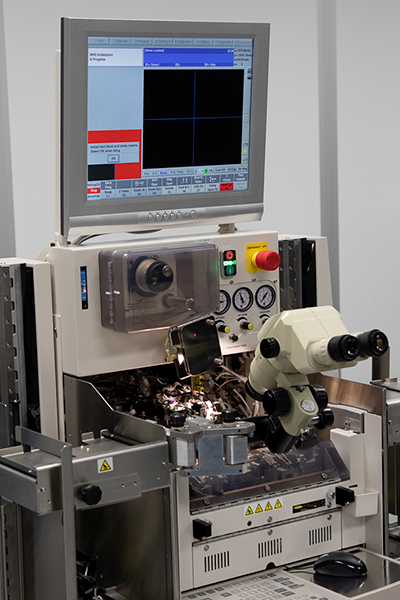

Installation and training took place in Q3 2019, and the bonder was put to immediate and reasonable use.

Stephen Robertson, Engineering Manager of Alter Technology UK, comments: “For one customer we’ve been manufacturing LED arrays that are about 1” square in size and have 96 LEDs each in relatively high volumes since mid-2016. The IConn ProCu PLUS can do the complete bonding for a chip – so that’s pattern recognition to find two fiducials on each of the 96 LEDs and make the 192 bonds at a rate of about six bonds per second – in less time our older machine takes to just perform the alignment.”

Robertson says that the new bonder’s most significant benefit is probably the machine’s ability to bond using 50micron wire. This is beneficial for high-power applications where high current carrying capacity is required. Robertson says that since taking delivery of the IConn ProCu, Alter Technology UK has received several inquiries for bonding and packaging high current die, one of which is for silicon carbide (SiC) Schottky diode for a space application that will be rated at 60A.

Another advantage of the K&S system is its ability to perform copper ball bonding. This is typically done as a cost reduction exercise for high-volume products. Still, Robertson, a member of the ESA Hybrid & Packaging Working Group, says that an increasing number of COTS components are bonded with copper, limiting options for high-reliability space applications. “Some background activities are going on to evaluate copper bonding in space applications, and having this capability may open up new opportunities in this area for us soon.”

Robertson is also impressed with the IConn’s automatic load capability, which significantly benefits higher volume projects. In automatic mode, devices are placed on lead frames (or strips) in a cassette on the input side of the bonder. These are drawn into the bonder and indexed through to the bonding area, where they are automatically aligned and bonded. The bonded strips are then fed into the output cassette.

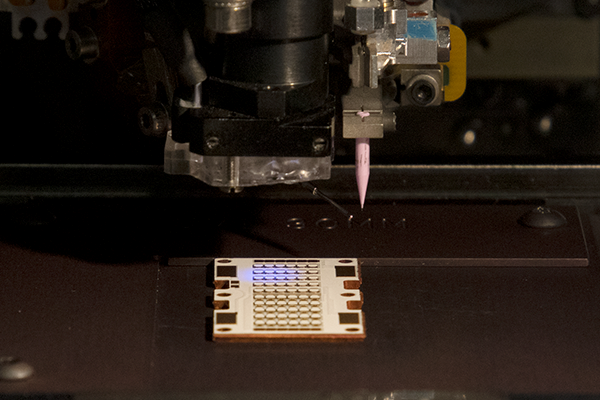

Featured Photo: An IConn ProCu PLUS in action – Photo courtesy of Kulicke&Soffa
