Reverse Geometry 0612 Thin Film Chip Resistors With Higher Power Dissipation and Low Resistance Values
- Posted by doEEEt Media Group
- On February 12, 2021
- 0
Vishay Intertechnology extends its NCW AT family of wide terminal thin film chip resistors with a new line of devices in the 0612 case size.
For power electronics in automotive and industrial applications, the Vishay Beyschlag NCW 0612 AT components combine high-temperature performance and excellent long term stability with high power dissipation up to 1W and low resistance values down to 0.10 Ohms.

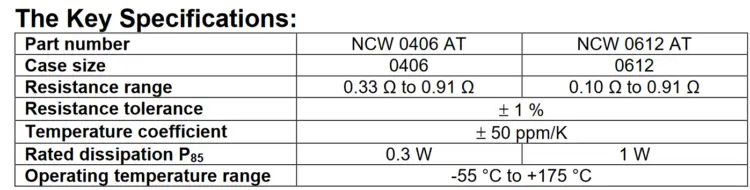

Features
- Joins the previously released NCW 0406 AT
- Optimized for use in harsh and high temperature environments without compromising power rating or electrical performance
- The perfect choice for most fields of modern professional power electronics in which power dissipation, reliability, stability, and robust design are major concerns
- Larger 0612 case size
- Higher power dissipation up to 1 W
- Lower resistance values down to 0.10Ohm
- AEC-Q200 qualified
- Wide terminal contact geometry provides superior robustness against thermal cycling
- High operating temperatures up to +175 °C
- Advanced sulfur resistance as verified according to ASTM B 809
- Superior moisture resistivity at 85 °C and 85 % relative humidity
Market Applications:
- DC/DC converters, LED drivers, DC current monitoring, and battery management systems in automotive and industrial applications
Source: Vishay Intertechnology
