High Temperature 175C Automotive Chip Resistors
- Posted by doEEEt Media Group
- On November 23, 2020
- 0
Panasonic has released new high-temperature thick film chip resistors in automotive-grade that include its series: ERJ H2G, H2C, H2R, H3G, H3E, H3Q H6G and HP6.
Features

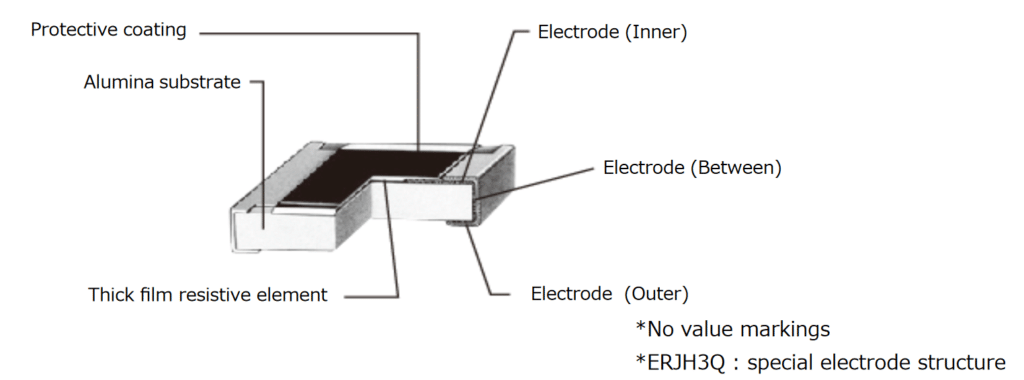

- High reliability…Metal glaze thick film resistive element and high temperature of electrodes structure

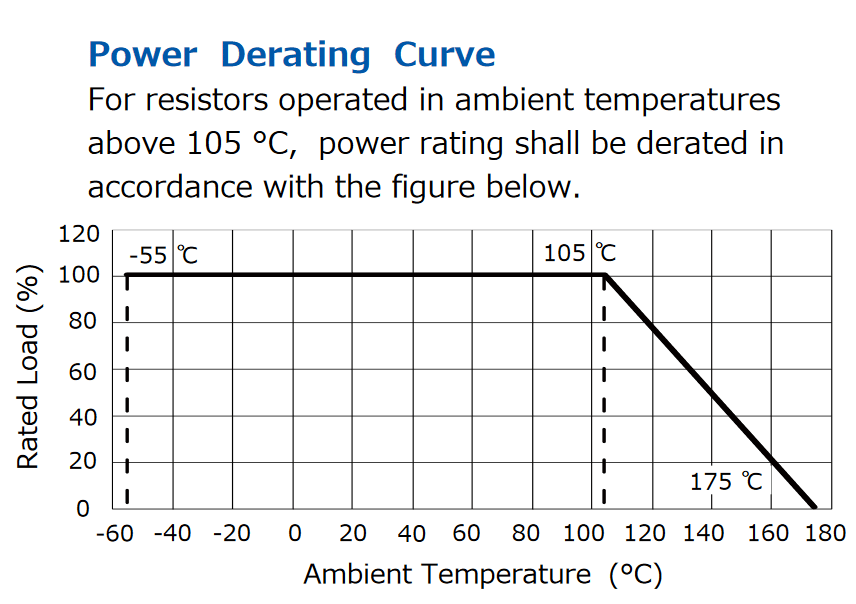

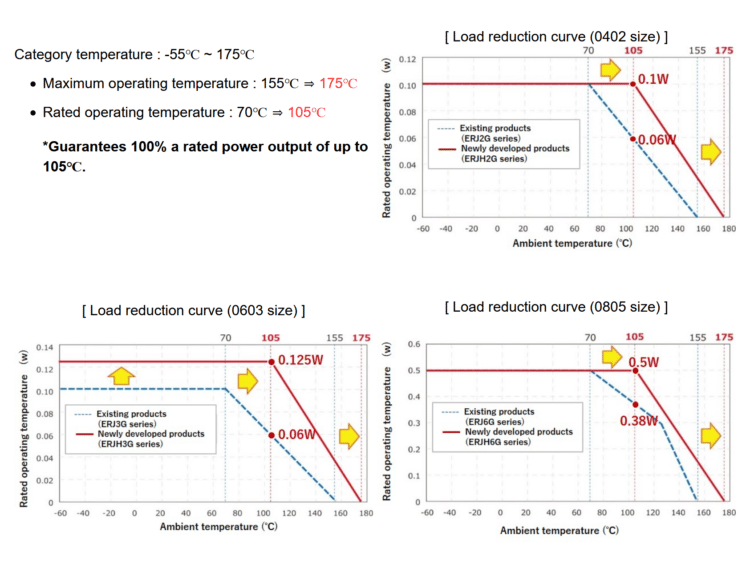

- Achieve maximum category temperature 175°C and rated category temperature 105 °C
- Compatible with placement machines … Taping packaging available
- Suitable for both reflow and flow soldering
- Reference Standard … IEC 60115-8，JIS C 5201-8，JEITA RC-2134C
- 0402, 0603, 0805 case sizes
- AEC-Q200 compliant
- RoHS compliant
Source: Panasonic
