High Current SMD Power Inductor Suitable for Class D Amplifiers

• Posted by doEEEt Media Group
• On March 11, 2021
• 0

Sumida announced the release of its is CDEPH6211 SMD inductors characterized by high current & power capability and low resistance. It can be used in compact Class-D-Amplifiers and consumer electronic applications such as a server, desktop, DC-DC converters, battery-powered devices, high current power supplies.

Features:

• Flat wire windings provide exceptionally low DC resistance
• Magnetically shielded
• Operating temperature range: －40℃ ～＋125℃ (Including coil’s temperature rise.)
• L×W×H: 10.0×6.5×11.5mm Max.
• Product weight: 3.27g
• Moisture Sensitivity Level: 1
• Storage temperature range: -40℃ ～125℃
• Carrier tape and reel packaging
• 13.0”diameter reel
• 250pcs per reel

Applications:

Best suited as LPF inductor for compact Digital Amplifier (Class-D-Amp) and radio audio amp.

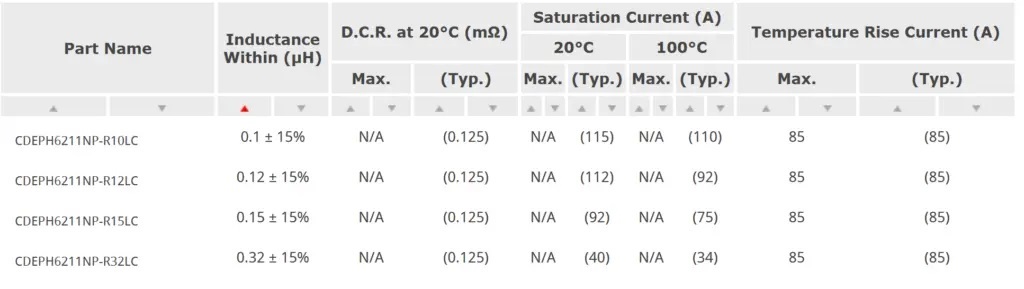

Specification and Ratings:

Source: Sumida
