Dual-Mode Chokes Expand Inverters Capabilities

Innovative hybrid filters built with the latest magnetic materials enable lightweight, miniaturized inverters to satisfy the latest green-energy and mobility applications.

Important changes in the way electricity is generated and used—such as increasing reliance on energy from renewable sources, the change to efficient variable-speed drives in industrial and domestic appliances, and adoption of hybrid or battery-electric vehicles—are increasing demands for electronic inverters that can be controlled to provide ac power at a desired voltage and frequency.

Taking renewable energy as an example, utility companies’ strategies are moving toward distributed power generation, with micro generators feeding into the grid at multiple points in the network. There’s also interest in small non-grid-tied generators for deployment on consumer or farming and light commercial/industrial sites.

Such applications demand compact and low-cost electronic power conditioning. This would enable conversion of the harmonic-rich and unstable output of a wind turbine, or the changing dc output of an array of photovoltaic panels, first into high-voltage, capacitor-stabilized dc that’s then input to an inverter to generate a consistent ac waveform at a frequency suitable for feeding into the grid.

Similarly, in hybrid/EV or motor drives, where constantly adjusting the inverter’s output frequency using logic or software commands is key to controlling the motor speed, compact dimensions, low weight, and affordability are critical to ensure market growth.

Operating Principles and Noise Sources

An inverter like the bridge inverter shown in Figure 1 commutates current through the load by turning on and off the upper and lower power switches in alternate legs in sequence. The power switches may be insulated gate bipolar transistors (IGBTs) or super-junction MOSFETs, or—in high-end applications such as premium electric vehicles or where ultimate energy efficiency is required—wide-bandgap devices such as silicon-carbide (SiC) MOSFETs. Each gate is controlled in sequence relative to all others using a pulse-width-modulated (PWM) signal.

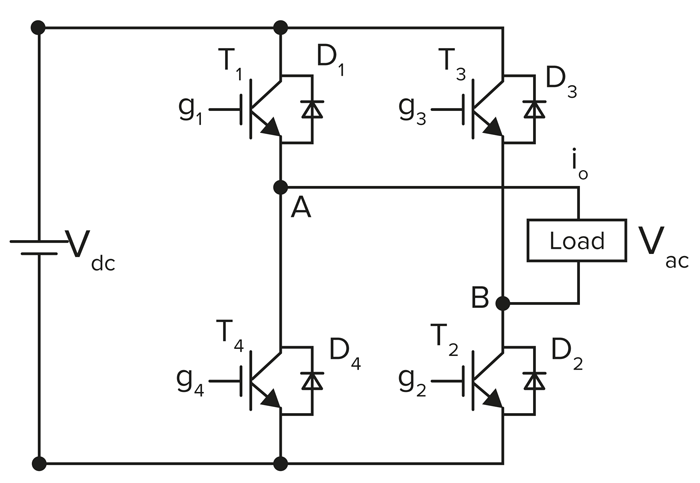

1. Shown is a simple single-phase full-bridge inverter

If the power switches are IGBTs, the frequency of the PWM signals applied to each gate is typically about 20 kHz. MOSFETs can operate at much higher frequencies up to several hundred kilohertz. In either case, rapid switching produces abrupt changes in voltage across the transistors, causing oscillations containing high-frequency noise at harmonics of the switching frequency.

In any IGBT-based inverter for a wind or solar generator, noise signals can exist at frequencies up to 1 MHz or more. These and other sources of noise such as dc-dc converter switching elsewhere in the system, coupled onto the ac output power lines, can impair the output power quality and cause interference. This can affect the system’s own control signals, such as analog feedback signals, as well as nearby equipment.

To prevent such distortion and interference, standards such as IEEE 1547 and UL 1741, which apply to inverters for distributed-power systems like wind or solar generators, impose limits on the harmonic content allowed in the inverter output. Radiated electromagnetic interference (EMI) is also subject to limits imposed by standards such as FCC Part 15 B.

Mitigating Switching Noise

To comply with applicable specifications on noise and electromagnetic compatibility, filters placed throughout the system remove harmonics from voltage and current waveforms, correct the power factor by ensuring voltage and current waveforms are in phase, and minimize distortion.

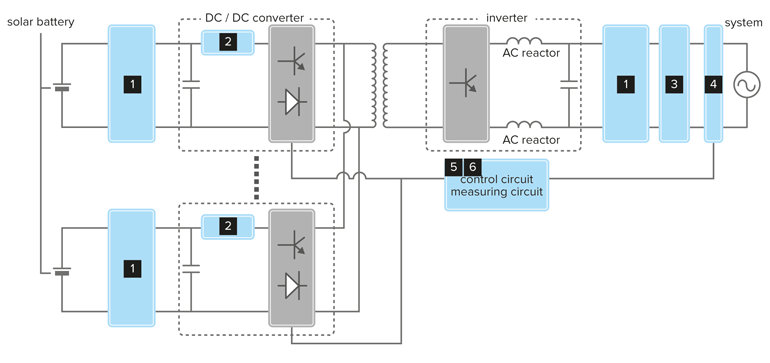

Figure 2 shows the locations of filters for attenuating noise in a solar-energy power-conditioning system. The filter at the output of the inverter is designed to remove switching frequency transients. It contains a combination of X and Y capacitors, inductors, and chokes to remove common-mode and differential-mode noise at the main harmonics of the switching frequency.

2. Here are the main functional blocks of a solar power-conditioning system, highlighting filtering requirements. source: Komet

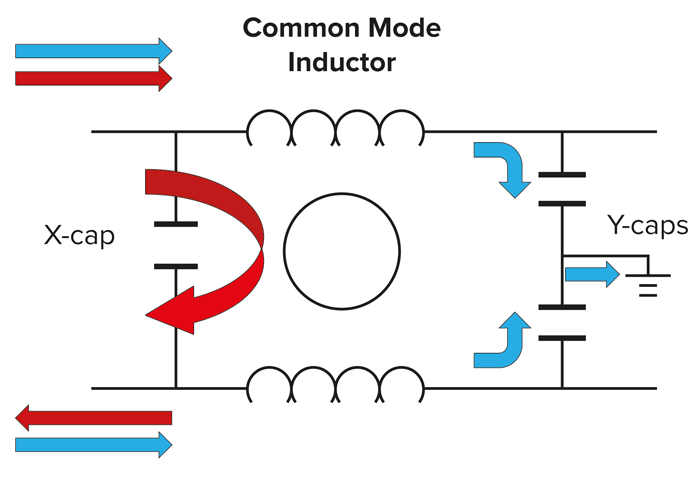

Figure 3 provides more detail on the composition of the filter. In principle, X capacitors and chokes remove differential-mode noise, while Y capacitors and common-mode inductors remove common-mode noise. Common-mode noise appears in the same direction on two conductors, whereas differential-mode noise appears in opposite directions on two conductors.

The common-mode choke coil as shown in Figure 3 is a four-terminal device that comprises two conducting wires wrapped in opposite directions around a single magnetic core.

Conventionally, this core consists of ferrite material. Since magnetic flux flows inside the core, common-mode choke coils act as inductors that provide high impedance against common-mode (noise) currents while allowing wanted differential currents to pass.

As far as the common -mode choke is concerned, identical currents flowing in opposite directions through the choke windings will create equal and opposite magnetic fields that cancel each other out. Therefore, the choke presents minimal impedance to the current flowing into the load and back through the return path. Differential noise refers to distortions that cause differences between these two currents. The magnetic fields due to these different signals will not cancel out; instead, they will present high impedance that attenuates the distortion.

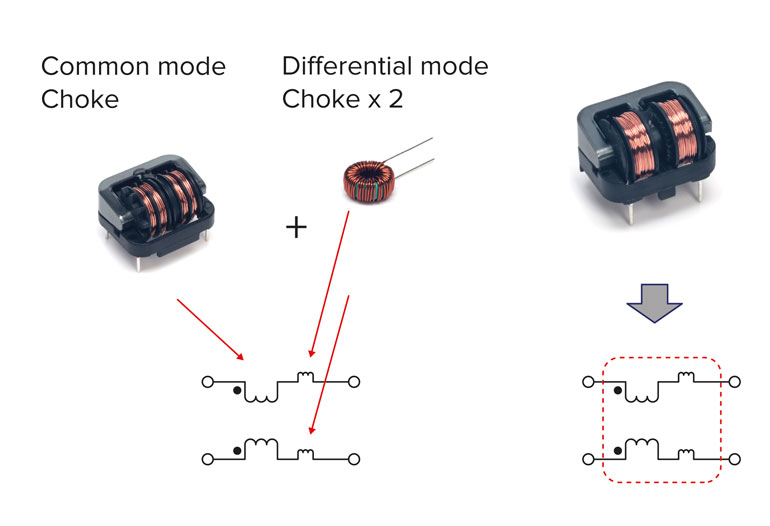

4. Dual-mode chokes integrate three magnetic components, saving solution size and part count. Source: Komet

KEMET also leveraged the extra design flexibility afforded by its proprietary materials to optimize the shape of these dual-mode chokes. The end result is significantly enhanced differential-mode (normal mode) noise suppression.

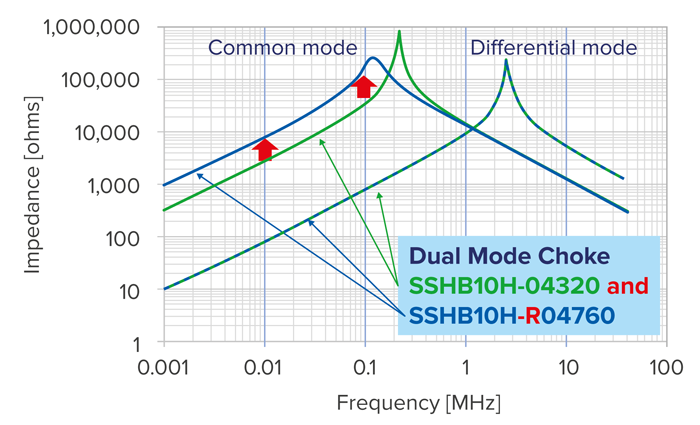

Figure 5 illustrates the high performance of the SSHB10 dual-mode chokes, presenting high impedance to both common-mode and differential-mode noise. The standard type, represented in this diagram by the SSHB10H-04320, is optimized for high-temperature performance. The SSHB10H-R04760 features a core material of increased permeability, which further boosts impedance to common-mode noise while maintaining identical differential-mode performance. Both chokes are rated for current up to 3 A.

Source: Power Electronics article

featured image credit: Kemet

by: Michael Freitag,  director of magnetics product management at KEMET Corp.
