Automotive Grade Precision Thin Film Chip Resistor Arrays

Vishay Intertechnology announces that the company has enhanced its ACAS 0606 AT and ACAS 0612 AT precision Automotive Grade thin film chip resistor arrays with higher resistance ratios up to 1:100 and operating voltages up to 100 V.

Automotive-grade ACAS AT precision thin film chip resistor arrays featuring enhanced higher resistance ratios and operating voltages for increased design flexibility in voltage divider and signal amplification applications

Provide designers with greater flexibility by allowing them to attain a broader range of output voltages for any input in voltage divider applications. It delivers a five-fold amplification factor increase compared to previous-generation devices.

Offering two and four integrated resistors on one substrate, respectively, the ACAS 0606 AT and ACAS 0612AT lower costs when compared to using multiple high-precision discrete resistors, while at the same time their stable divider ratio improves application stability.

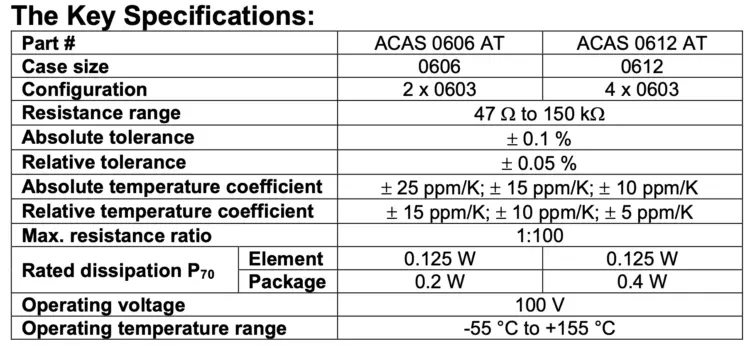

Product Benefits:

• Resistance ratios up to 1:100
• Operating voltages up to 100 V
• AEC-Q200 qualified
• The high-temperature operation to +155 °C
• Increased accuracy:
  • Absolute tolerance of ± 0.1 %
  • Relative tolerance of ± 0.05 %
  • Absolute TCR down to ± 10 ppm/K
  • Relative TCR down to ± 5 ppm/K
• Resistance from 47 Ω to 150 kΩ, with equal or different resistor values
• Extremely robust against harsh environmental conditions
  • Superior moisture resistivity of l∆R/Rl < 0.5 % at +85 °C and 85 % relative humidity for 1000 hours
  • Advanced sulfur resistance in accordance with ASTM B 809
• 1000 V ESD capability
• Maximum rated dissipation to 0.125 W per element

Market Applications:

• Precision analog circuits, voltage dividers, signal conditioning, opamp, and feedback circuit applications
• Automotive electronics, such as engine control units, gearbox controls, safety, power supply electronics, body electronics, braking systems, climate control, steering technology, and lighting
• Audio equipment and instrumentation
• Industrial electronics, including battery measurement systems, sensors, scales, and precision amplifiers

Source: Vishay
