Electrification is Driving Capacitor Development

Despite a slowdown seen recently in auto sales, electrification keeps driving capacitor development according to Murray Slovick’s article published by TTI Market Eye blog.

Conventional wisdom says that when sales in a given market segment are falling, it’s not a great time to introduce new products.

Take the automotive industry, for example. While carmakers hit the 17 million sales mark for the fifth straight year in 2019 (down 1.3 per cent for the full year), they ended the year poorly: U.S. light-vehicle sales in December were down 5.8 per cent as compared to the same month in 2018.

Meanwhile, 2019 truck and SUV sales fell 3.2 percent from December 2018, while passenger car sales declined 12.5 percent. For the year as a whole, 16 car brands fell behind 2018 results and another nine ended their year with gains of 2 per cent or less.

The only trouble that is a growing number of practitioners are not buying into this line of thinking, preferring instead to take a “full speed ahead” approach.

This is not reckless marketing. Modern battery electric vehicles (BEV), hybrid EVs (HEV) and plug-in hybrid-electric vehicles (PHEV) are sparking a revolution in the capacitor technology used in vehicle control electronics.

Capacitor suppliers point to three key points:

• In 2019, automakers committed $225 billion to electrification in the coming years;
• EVs grabbed 2.2 per cent of the global vehicle market, according to EVvolumes.com, over the first 10 months of 2019 as a slew of new models hit the market; and
• This trend is giving no sign of slowing down – annual passenger EV sales are expected to rise to 10 million in 2025, 28 million in 2030 and 56 million by 2040, according to the research firm BloombergNEF.

That company’s study, “Electric Vehicle Outlook 2019,” projects up to 57 per cent of passenger vehicles to be electric by 2040. What is more, the management consulting firm McKinsey reports that, in 2019, worldwide EV sales approached 2.3 million vehicles.

With this growth in mind, it should not surprise us to see component suppliers continuing to expand their EV product offerings regardless of the near-term automotive sales outlook.

Metallized Polypropylene Film Capacitors

For example, consider two of the main purposes of capacitors in electric vehicles: to prevent ripple currents from reaching back to the power source, and to smooth out DC bus voltage variations. Capacitors are also vital in protecting semiconductors – originally thyristors, but now usually IGBTs.

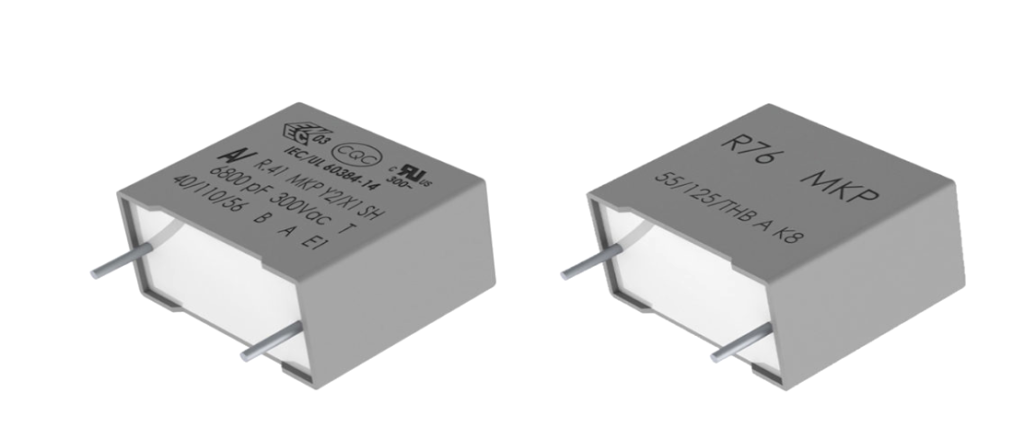

Metallized film has become the capacitor technology of choice for electric vehicles and other media- and high-power applications. Responding to demand, Kemet has launched its R41T and R76H series of AEC-Q200 qualified metallized polypropylene film capacitors to address the stringent requirements of the automotive applications, including those for electric vehicle powertrains and Advanced Driver Assistance Systems (ADAS).

This addition to Kemet’s product portfolio has a maximum operating temperature of 125 degrees C and exceeds the requirements of 85 degrees C/85 per cent relative humidity temperature-bias-humidity tests, a reliability test designed to accelerate metal corrosion. The R41T and R76H film capacitors support the design of high-performance, high-reliability circuits including those based on Wide Band Gap (WBG) semiconductor solutions.

These new film capacitors complement the rapid growth in electronic content on a typical passenger vehicle. “The technology employed in our R41T and R76H and metallized polypropylene film capacitors ensures a high level of electrical performance along with industry-leading levels of ruggedness and reliability,” said Dr Philip Lessner, Kemet Senior Vice President and Chief Technology Officer.

“With silicon approaching the limits of its development, the WBG market is expected to grow significantly, reaching a forecast of $1,820 million in 2024 – an increase of 33.4 per cent over a five-year period,” Lessner said. The R41T and R76H series capacitors are available immediately via Kemet distributors.

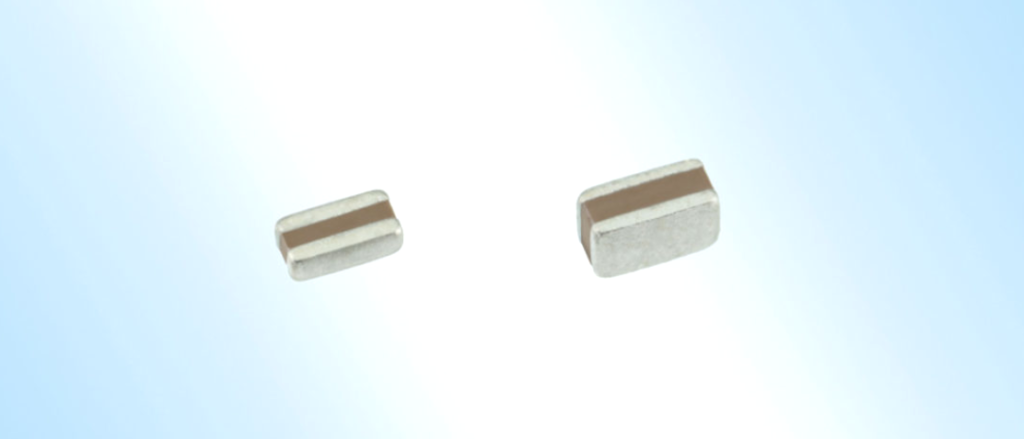

Flip-Type Reverse Geometry MLCCs

Multilayer ceramic capacitors (MLCCs) are commonly used in EV electronics and subsystems because of their high temperature ratings, small size and easy surface-mount form factor. Higher temperatures inside the control circuits mean that conventional plastic film capacitors may not be suitable for all applications, so ceramic MLCCs are being increasingly used.

As an additional benefit, MLCCs are generally surface mount direct to boards in which the components are mounted or placed directly onto the surface of a printed circuit board (PCB), yielding greater assembly efficiency and allowing shorter circuit tracks with lower inductance. In many cases this last feature allows lower capacitance values to be used, meaning that smaller components or fewer components can be used.

EV Launches are Accelerating

While sales figures may have been low coming into 2020, the automotive OEMs’ EV-model pipelines are fuller than ever before, with approximately 400 new battery-EV models expected to hit the market through 2025. In 2020 alone, 113 new EVs are expected to be launched.

The continued “full speed ahead” approach to product development shows that component suppliers have realized that the future is electric, and that it will be here soon.

The article has been modified from its original content.

Source: TTI Market Eye
