Comparative Evaluation of Wet Testing and Mechanical Testing for Quality Control of Tantalum Powder in Capacitor Production
- Posted by doEEEt Media Group
- On July 31, 2024
- 0
This article written by Dr. Vladimir Azbel, independent consultant on tantalum capacitors, compares conventional wet testing and proposed mechanical testing of anodes to predict quality of tantalum capacitors.
Introduction
Powder control is a crucial factor in tantalum capacitor production.
This paper discusses two methods for assessing the quality of tantalum powder in capacitor production: wet testing and mechanical testing. While wet testing is a reliable method for correlating powder characteristics with capacitance and leakage current, it is limited in the early stages of evaluation, particularly for leakage currents. Mechanical testing, with significant advantages over wet testing, offers early defect detection and comprehensive quality assessment of the powder. Introducing mechanical testing is recommended to enhance reliability.
Wet vs Mechanical Anode Reliability Assessment
Wet Test Methodology for Evaluating Tantalum Capacitor Anodes
Of the current powder inspection methods available to capacitor manufacturers, wet testing is currently the most reliable method. The wet test is a direct correlation between powder characteristics and anode capacitance and leakage current.
The setup (see Fig. 1) and procedures for testing capacitance and leakage current are well standardized.
Fig. 1 illustrates the setup for wet testing the anode in a tantalum capacitor, showing how the anode is immersed in the electrolyte and connected to the measurement instruments.
Wet Test Methodology Involves Several Steps:
- Sample Preparation: The anode is placed in the electrolyte (see Fig. 1).
- Voltage Application: The rating voltage of the capacitor or slightly higher is applied to the anode.
- Measurements: Leakage current and capacitance are measured.
- Result Analysis: The obtained data are compared with the technical specifications set by the capacitor manufacturer.
Mechanical Test Methodology
Mechanical Test Methodology: Stress-Strain Curve
Stress-strain curves, demonstrating high sensitivity to changes in the porous structure, are used to assess the material structure obtained by powder metallurgy methods (see Fig. 2). The setup of the testing machine for obtaining stress-strain curves is shown in Fig. 3.
To Obtain the Stress-Strain Curve of a Powder Product, the Following Steps Are Necessary:
- Sample Preparation: A pellet is pressed from tantalum powder and subjected to sintering.
- Tensile or Compression Testing Equipment: (see Fig. 3).
- Testing: The test sample is placed in the testing device, and a compressive force is applied to the sintered pellet, recording the stress-strain curve.
- Result Evaluation: The curve parameters allow for determining material characteristics such as tensile strength, yield strength, modulus of elasticity, and plasticity.
Agglomeration and Its Impact on the Technological Process
Agglomerated powders are used for pressing tantalum powders for capacitors. An agglomerate is a composition of primary powder particles, usually subjected to adhesive processes during agglomeration, that do not affect the primary powder particle morphology. The agglomeration scheme is shown in Fig. 4.

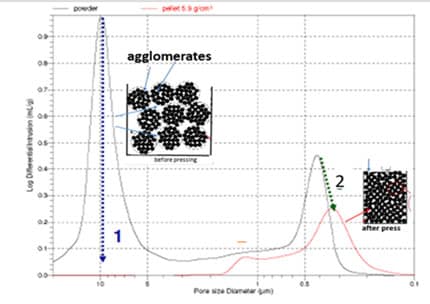

The die is filled only with agglomerated powder, providing the necessary flowability and specific bulk density (SBD), ensuring uniform mold filling. During process pressing, the agglomerate distraction is illustrated by prosimetra data (see Fig. 5).
- Large Pores (Peak 1): These are inter-agglomerate pores in the powder, that distractive during pressing.
- Small Pores (Peak 2): These are pores of the primary powder particles formed, as a result, of agglomerate distractive during pressing.
Stress-Strain Curve Parameters Description
The parameters of the stress-strain curve of sintered pellets reflect the characteristics of their structure, depending on the primary powder particles. The stress-strain curve provides information about the mechanical properties of the powder, such as yield strength and Young’s modulus (see Fig. 6).
Yield Strength (Ay): Ay depends on neck size. The latter affects the value of the maximum permissible formation voltage. For porous materials, yield strength can be calculated using the following equation:
Ay = b * A0 * (X/D) 2 /2/
, where b is an empirical constant, Ay is the yield strength of the sintered porous material, A0 is the yield strength of the deformed material. Neck size (X) is divided by the primary powder particle size (D), but this ratio cannot exceed 0.5.
•Young’s Modulus (E): E is related to porosity, which affects capacitance. The behavior of Young’s modulus of porous material, can be described by the following equation
E = E0 * (1 – p/pc) /3/
, where E is the modulus of elasticity of the porous material with the corresponding density p, and E0 is the modulus of the solid material at density pc ~ 1.
The CC curve can be used to calculate the strain hardening coefficient (n), which is related to the defectiveness of the material. This coefficient can influence leakage currents.
Advantages and Disadvantages of Wet and Mechanical Testing
Advantages and Disadvantages of Wet Testing
Capacitance:
- Reliability: Capacitance testing is reliable for evaluating the final product. It directly depends on the specific surface area of the powder and the anode manufacturing process.
- Disadvantages: These tests are conducted late, and results may depend on previous processes, making it difficult to assess the initial powder quality when defect correction is no longer possible.
Leakage Current:
- Reliability: Leakage current testing is crucial for assessing anode quality, as high leakage currents indicate defects and internal stresses in the anode.
- Dependence on Defects: High leakage currents can be caused by inhomogeneities and other defects, resulting from low powder quality or improper manufacturing conditions.
Advantages and Disadvantages of Mechanical Testing
Advantages:
Comparison with the benchmark: The presence of a benchmark curve, allows precise comparison of samples and identification of deviations from the norm, making this method more reliable for assessing powder quality.
- Early Defect Detection: This method, allows to identify of potential issues, at the sintering stage before the pellet proceeds to the next production stage.
- Objective Assessment of Mechanical Properties: The stress-strain curve provides a comprehensive evaluation of the powder’s overall characteristics, such as particle size distribution width, shape, and chemical purity.
Disadvantages:
- Technical Complexity: Mechanical testing requires equipment similar to that used in production for testing the properties of tantalum wire. In the absence of specialists in mechanical testing, specialized programs exist for analyzing stress-strain curves.
Conclusion
Since production conditions are determined by the consumer, powder evaluation based on the benchmark stress-strain curve remains an important method for the early detection of potential problems.
Recommendations
For a more accurate assessment of tantalum powder quality, in conditions, where anode manufacturing processes, are determined by the tantalum capacitor producer, a comprehensive approach is recommended:
- Stress-Strain Curve Comparison with the Standard: Identify and eliminate potential powder defects at the early stages.
- Anode Leakage Currents: Check for the absence of defects and internal stresses that may arise during production.
- Capacitance: Confirm that the final product meets requirements despite this parameter not being defect-dependent.
Thus, the integration of these methods will ensure the quality of the powder used and the reliability of tantalum capacitors.
