SILICON CAPACITORS SPACE Pre-Evaluation
- Posted by doEEEt Media Group
- On February 25, 2020
- 0
Motivation
It is believed that the recent improvement in silicon capacitor technology might provide very interesting advantages such as stable capacitance value over the operating temperature range (up to 200C-250C) or small dimensions. In addition, these new types of silicon capacitors might be used in different kind of application (DC/DC converter, power decoupling, RF application, etc.) with quite low voltage.
Silicon capacitor might replace advantageously, due to relatively small height, Ceramic capacitor type I (low capacitance value), and even ceramic capacitors type II (low voltage application, i.e. close to Integrated circuit). GaN application which requires high-temperature components would also benefit a high temperature (200C-250C) silicon capacitor range. However, relevant data demonstrating the high reliability, claimed by Silicon capacitor manufacturers shall be provided to confirm parts suitability for space application.
Alter Technology Strategy on Extreme Temperatures
New space missions include more extreme requirements of storage and operating temperatures and vacuum conditions exceeding standard -55ºC / +125ºC conditions Miniaturization implies increase higher power dissipation and hence max junction and PCB temperatures.
GET IN TOUCH TODAY!
Do you have questions? Contact us!
Alter Technology Activities
• Parts reliability assessment to ensure mission performance
• Characterization of existing technologies under such extreme temperature conditions
• Understanding of failure mechanism
• Development of specific NEW parts for very extreme application
• Assessment of new packages and assembly methods

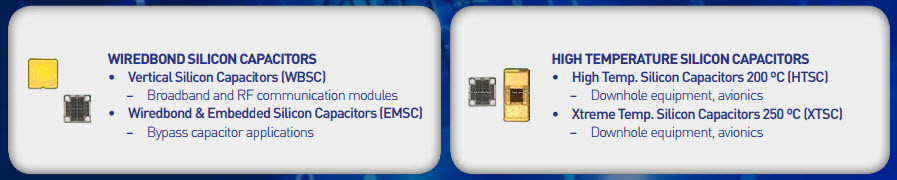

Selected Technology for Evaluation Tests
Advantages of IPIDIA´s Technology

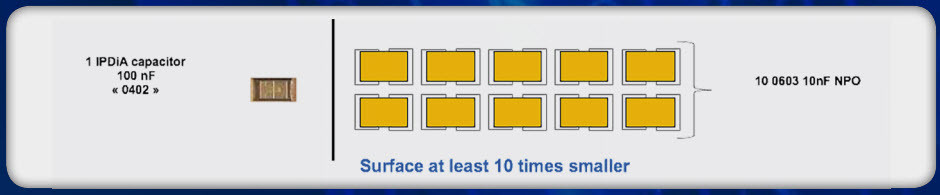

Space-saving on boards thanks to pics capacitor density 100 nF: PICS vs. COG/NPO capacitors

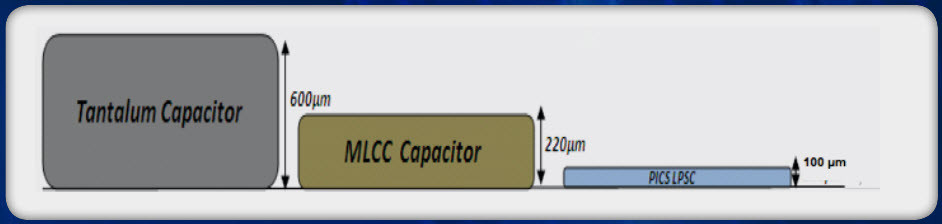

The Lowest profile: PICS vs MLCC and Tantalum Capacitors

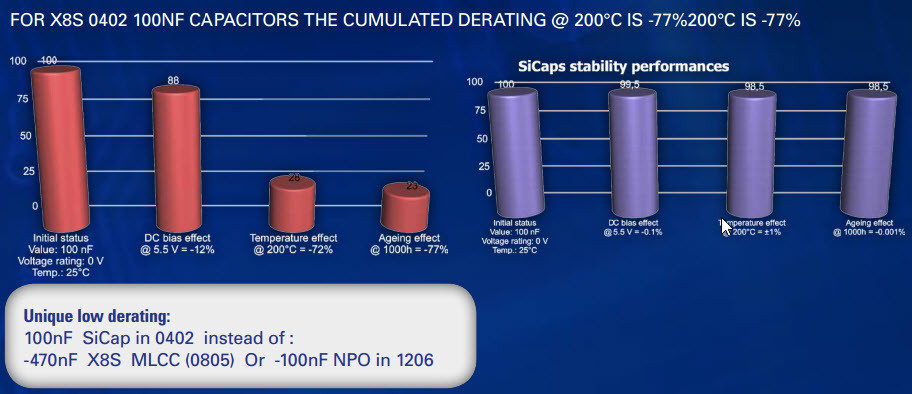

For X8S 0402 100NF Capacitors the cumulated derating @ 200ºC IS -77%200ºC IS -77%

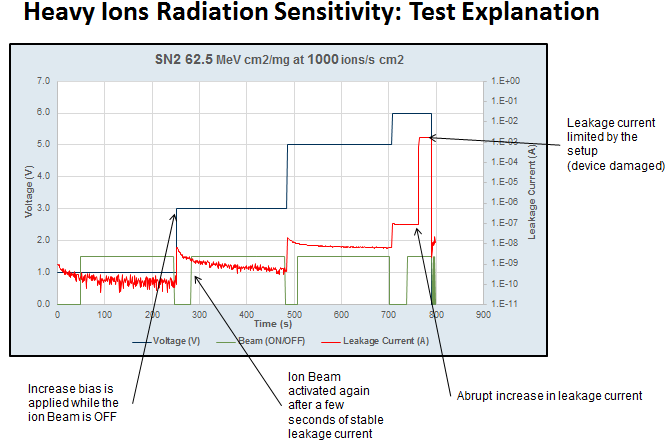

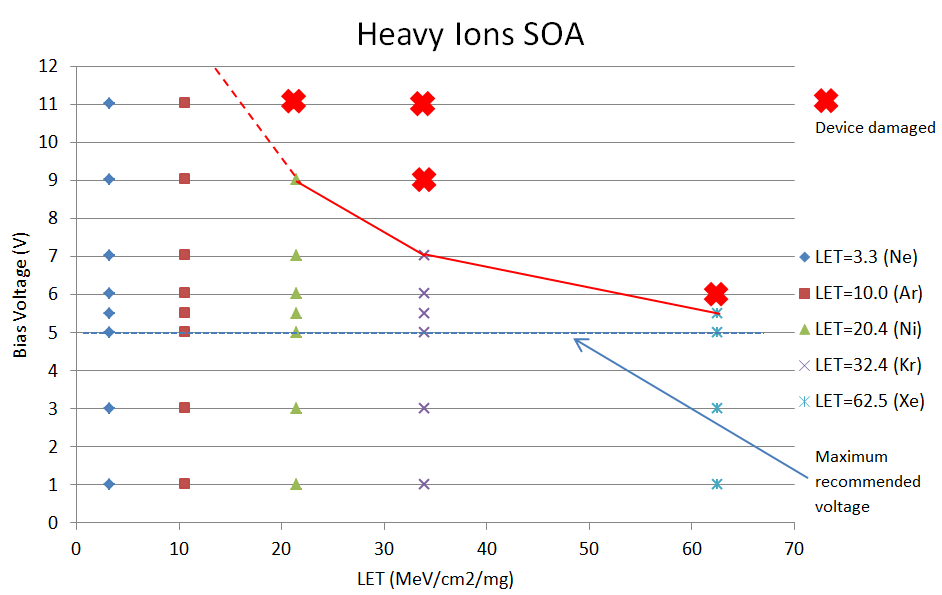

Radiation Tests
