SRS shock testing for Small Sats
- Posted by doEEEt Media Group
- On June 2, 2021
- 0
SRS Shock Testing is intended to reproduce the sudden shock that the satellite experiences when deployed from the launcher. This test consists of placing the EUT on a table and shocking the table with a hammer or projectile. This test is normally applied just to non-qualified designs. SRS is not a complex test, but it is tricky and requires a lot of experience from the operator.
SRS Shock Test equipment
Shock Response Spectrum (SRS) requires:

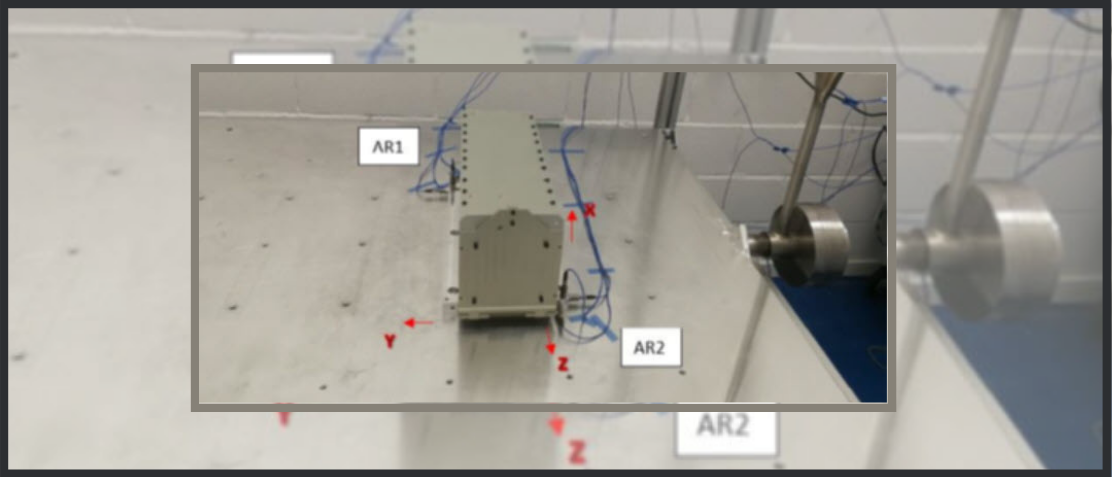

- A shock table with a hammer can shock in a reproducible way.
- Acceleration register system: accelerometers and data acquisition system.
Test flow
When executing an SRS test, the main problem is preparing the setup (table, hammer, and EUT) to produce the desired acceleration profile in the EUT. Since the shock profile is not easily predictable by modeling, experience is key. Therefore, an empirical setup is needed with a dummy mass. The iterative adjustment of the test parameters is needed to ensure that the shock produces the desired acceleration profile and is reproducible. A critical parameter of these tests is:
- The energy of the hammer
- Shape and hardness of the hammerhead
- Mass of the EUT
- Position of the DUT on the table
- Size, thickness, and hardness of the table material

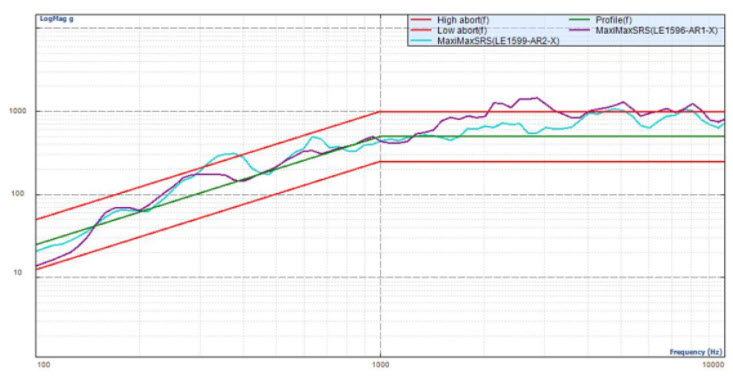

The SRS test results are the measurement of a broad spectrum (100 to 10,000Hz) to which the smallsat has been submitted. Normally, each shock is repeated 3 times on each axis. The piece of equipment is subsequently inspected for cracks or displacements. -In addition, low-level sine surveys can be performed to compare the position of the eigenmodes before and after the shocks. Functional tests can be performed too to assess any damage in the electronics.
The launcher defines the test level (acceleration profile) because he knows how the deployment of the satellite is performed.
Shock Response Spectrum (SRS) tests do not require cleanliness because they are performed on structural models.
Applicable Standards for Shock Response Spectrum (SRS) Test
- ISO 19683, which refers to ISO 15864
- Launcher’s requirements
