New test methodologies

• Posted by doEEEt Media Group
• On February 21, 2020
• 0

Combined Vacuum Temperature and Motion

Life test in vacuum on microswitches

Specific test development including external motion vacuum feed-though with controlled displacement

Continuous monitoring of Electrical characteristics and temperature.

•  Motion Cycles: > 500.000 cycles
• Temperature: -165°C

Combined strain and extreme temperature

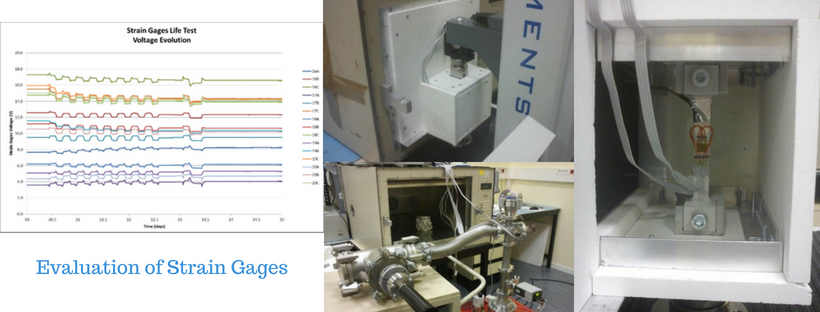

Evaluation of Strain Gages

Load Tester coupled to a climatic chamber with a custom extension.

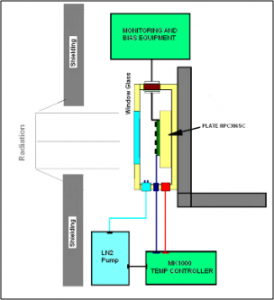

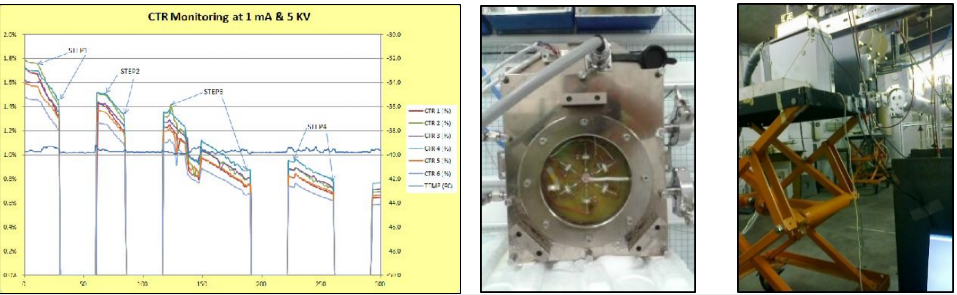

Combined radiation and cold temperature

• Hot/cold plate of 150mm x 150mm dimensions
• LN2 pumping system w/10L LN2 dewar to be used as a portable system
• Temperature Range from -100ºC to + 200ºC.
• Vacuum conditions ( 1E-3mbar) with lid cover, with 100mm viewing window.
• Several Electrical / Optical Feedthroughs to monitoring during test.
